Planet Industrial IGSW-24040T 24-Port 10/100/1000Mbps with 4 Shared SFP Gigabit Managed Switch

Deals Planet Industrial IGSW-24040T 24-Port 10/100/1000Mbps with 4 Shared SFP Gigabit Managed Switch


Environmentally Hardened Design for Industrial Networks
PLANET IGSW-24040T is an environmentally hardened Industrial Managed Ethernet Switch with high Port-density, Gigabit Fiber link capability and 19” rack-mountable design. It is specifically designed to operate stably in electrically harsh and the toughest environment under extended wide operating temperature range. The IGSW-24040T is equipped with advanced management functions and provides 24 10/100/1000Base-T copper ports and 4 shared 1000Base-S/LX SFP slots delivered in a rugged strong case. It is capable of providing non-blocking switch fabric and wire-speed throughput as high as 48Gbps in the temperature range from -40 to 75 degrees C without any packet loss and CRC error. It greatly simplifies the tasks of upgrading the industrial network and building automation LAN for catering to increasing bandwidth demands such as IP video surveillance. The IGSW-24040T is the most reliable choice for highly-managed and Fiber Ethernet application in Industrial network.

  ■ Extended Operating Temperature: From -40 to 75 degrees C
  ■ Robust Industrial ProtectionIP30 metal case and 19” rack-mountable design
  ■ Ethernet Protection: 6KV DC ESD protection
  ■ Power Redundant: 1+2 RPS design, supports one 100~240V AC and dual 36~72V DC power input
  ■ Redundant Ethernet Network: STP, RSTP and MSTP to greatly improve redundant data backup and guarantee network resilience
  ■ Flexible Fiber uplink capability: Compatible with 1000Base-SX/LX and 100Base-FX SFP transceiver

Layer 2 / Layer 4 Full-functioned Managed Switch for Building Automation Networking
The IGSW-24040T Industrial Managed Ethernet Switch is perfect for applications in the factory data centers and distributions. It provides advanced Layer 2 to Layer 4 data switching and redundancy, Quality of Service traffic control, network access control and authentication, and secure management features to protect customer’s industrial network connectivity with reliable switching recovery capability that is suitable for implementing fault tolerant and mesh network architectures.

Cost-effective IPv6 Managed Gigabit Switch Solution for Industrial Ethernet
The current IPv4 network infrastructure is not capable enough to provide IP address to each single user / client. The situation forces the ISP to build the IPv6 (Internet Protocol version 6) network infrastructure speedily. The IGSW-24040T is the ideal solution to fulfill the demand of IPv6 management Gigabit Ethernet Switch, especially in the Industrial hardened environment. It supports both IPv4 and IPv6 management functions and can work with the original network structure. With easy and friendly management interfaces and plenty of management functions included, the IGSW-24040T Managed Switch is the best choice for you to build the IPv6 FTTx edge service and for Industrial applications to connect with IPv6 network.

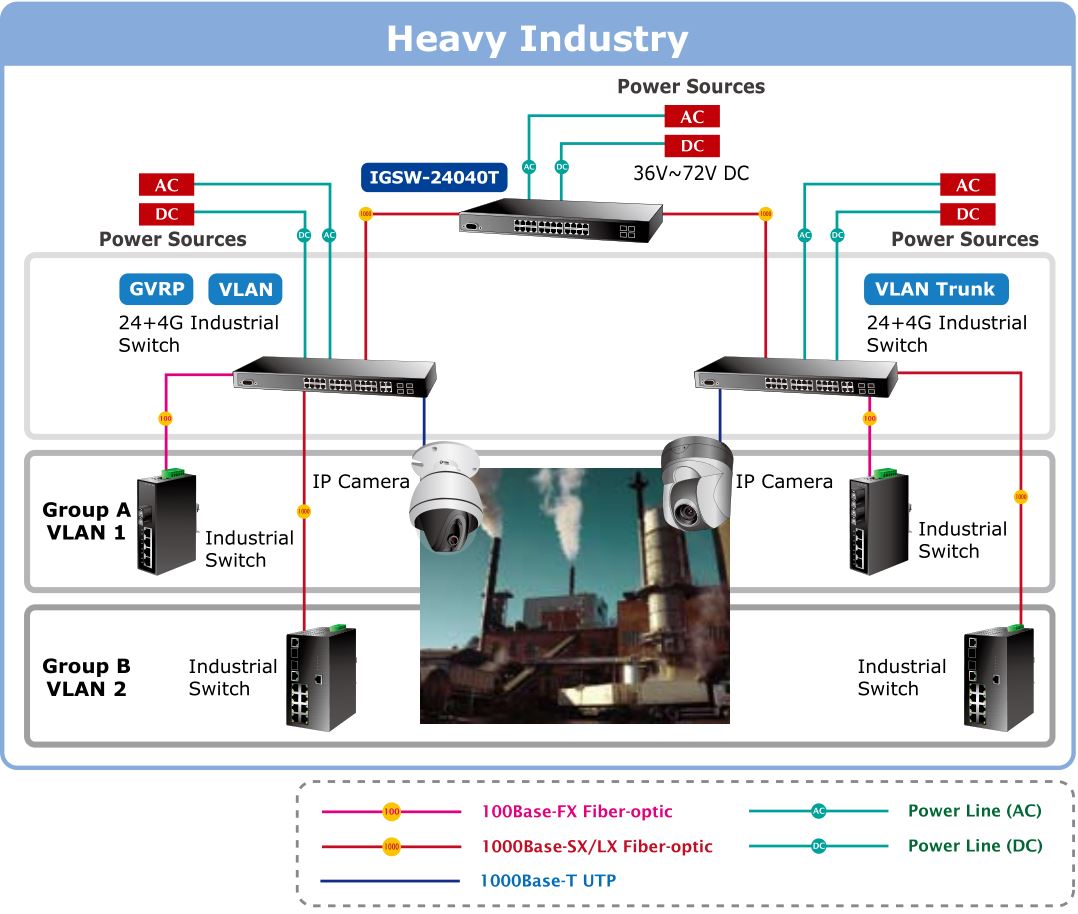

Dual Redundant Power to Ensure Continuous Operation
The IGSW-24040T particularly supports both AC and DC redundant power supplies to ensure reliable and continuous operation in Industrial Network. Generally, a regular industrial switch may have two DC power supplies for redundancy; the IGSW-24040T provides one more power -- alternating current (AC) -- for stronger redundant application besides providing redundant DC power.

The IGSW-24040T is equipped with one 100~240V AC power supply unit and one additional DC 36~72V power supply unit for redundant power supply installation. The redundant power systems are provided to enhance the reliability with either 100~240V AC power or DC 36~72V power supply unit and specifically designed to fulfill the demands of high tech facilities in handling the highest power integrity. In addition, with the 36~72V DC power supply implemented, the IGSW-24040T can be perfectly applied as the telecom level device which requires constant stable operation in the harsh electronic room.

Powerful Security.
The Industrial Managed Gigabit Switch offers comprehensive Access Control List (ACL) for enforcing security to the edge. Its protection mechanisms also comprise port-based 802.1x and MAC-based user and device authentication. The port-security is effective in limiting the number of client pass-throughs so that the network administrators can now construct highly secured corporate networks with time and effort considerably less than before.

Extended Operating Temperature and Redundant Dual Power Sources
With dual power input sources - alternating current and direct current design, the IGSW-24040T prevents the system switch from shutting down as a result of a sudden power outage. The IGSW-24040T is also equipped with the IP-30 metal case that is ideal for operating temperature range from -40 to 75 degrees C and it can be placed in any harsh environment such as in the telecom control room.

Excellent Solution of Core / Department Switch
With 24 10/100/1000Mbps ports, the IGSW-24040T is able to connect up to 24 edge switches in the Ethernet environment. Moreover, the IGSW-24040T provides 48 Gigabit per second switch fabric and high bandwidth for backbone connection. The IGSW-24040T is an excellent choice of core layer switch for a Gigabit network.

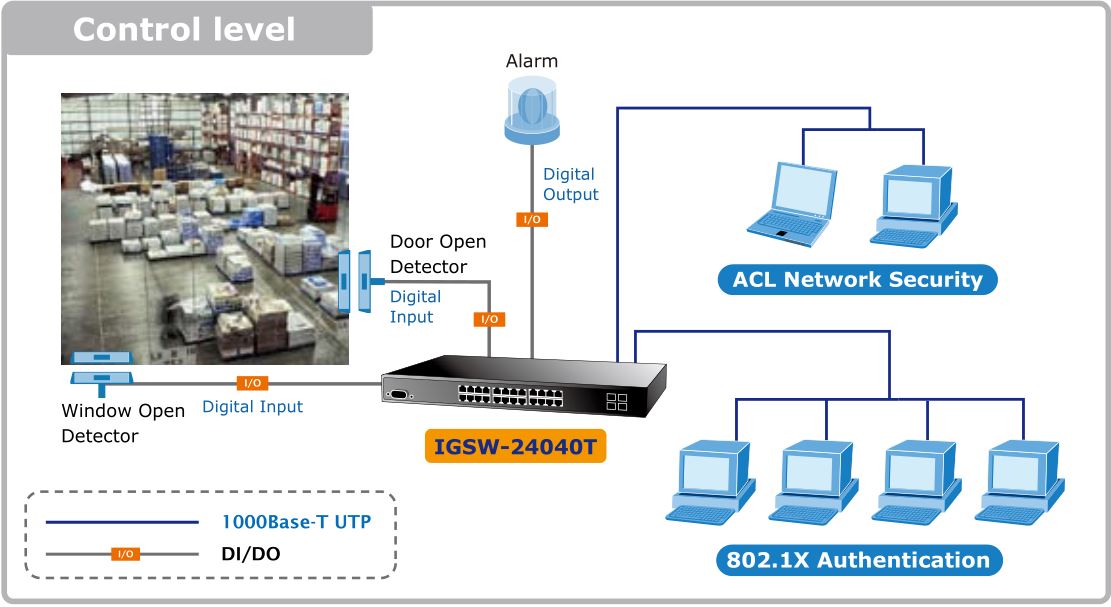

Advanced Protection via Digital Input and Digital Output Features
The IGSW-24040T’s digital input and digital output functions help the administrator to efficiently react to the emergency events. The digital input can be set up to indicate urgent events and send the messages or alarm to the network system once the urgent event detected by the external device such as door open detector or windows open detector. The digital output function can define the immediate response such as port failure or power failure to the related urgent event.

Hardware Specifications

Copper Ports24 10/ 100/1000Base-T RJ-45 Auto-MDI/MDI-X ports
SFP/mini-GBIC Slots4 1000Base-SX/LX/BX SFP interfaces, shared with Port 21 to Port 24
Compatible with 100Base-FX SFP
Console Port1 x RS-232 DB9 serial port (115200, 8, N, 1)
Switch Processing SchemeStore-and-Forward
Switch Fabric48Gbps / non-blocking
Throughput (packet per second)35.7Mpps
Address Table8K entries, automatic source address learning and ageing
Share data Buffer1392 kilobytes
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame10Kbytes
Reset Button< 5 seconds: System reboot
> 10 seconds: Factory Default
Dimensions (W x D x H)440 x 200 x 44.5 mm, 1U high / 19”
LEDPower, Fault, Link/Act and speed per Gigabit port
Power ConsumptionMax. 30 watts / 102 BTU (AC)
Power Requirements – ACAC 100~240V, 50/60Hz 0.75A
Power Requirements – DC36V DC @ 0.75A, Range: 36V ~ 72V DC
ESD Protection6KV DC
DI/DO2 Digital Input (DI)
 Level 0: -24~2.1V (± 0.1V)
 Level 1: 2.1~24V (± 0.1V)
 Input Load Current: 10mA max.
2 Digital Output (DO): Open collector to 24VDC, 100mA max. load

Layer 2 Function

Basic Management InterfacesConsole, Telnet, Web Browser, SNMPv1, v2c and v3
Secure Management InterfaceSSH, SSL, SNMP v3
Port configurationPort disable / enable
Auto negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable / enable
Bandwidth control on each port
Power saving mode control
Port StatusDisplay each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status
VLAN802.1Q Tagged based VLAN
Port-based VLAN
Private VLAN Edge (PVE)
Up to 256 VLAN groups, out of 4094 VLAN IDs
Port TrunkingIEEE 802.3ad LACP / Static Trunk
Supports 12 groups of 16-Port trunk
QoSTraffic classification based, Strict priority and WRR
4-level priority for switching
 - Port Number
 - 802.1p priority
 - 802.1Q VLAN tag
DSCP/TOS field in IP Packet Policy-Based QoS
IGMP SnoopingIGMP (v1/v2) Snooping, up to 255 multicast Groups
IGMP Querier mode support
Access Control ListIP-based ACL / MAC-based ACL
Up to 256 entries
RFC-1493 Bridge MIB
RFC-1643 Ethernet MIB
RFC-2863 Interface MIB
RFC-2665 Ether-Like MIB
RFC-2819 RMON MIB (Group 1)
RFC-2737 Entity MIB
RFC-2618 RADIUS Client MIB
RFC3411 SNMP-Frameworks-MIB

Standards Conformance

Regulation ComplianceFCC Part 15 Class A, CE
SafetyUL, cUL
Standards ComplianceIEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX/100Base-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x Flow Control and Back pressure
IEEE 802.3ad Port trunk with LACP
IEEE 802.1D Spanning tree protocol
IEEE 802.1w Rapid spanning tree protocol
IEEE 802.1s Multiple spanning tree protocol
IEEE 802.1p Class of service
IEEE 802.1Q VLAN Tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 791 IP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
StabilityIEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)


OperatingTemperature:-40 ~ 75 degrees C (DC power)
        -20 ~ 60 degrees C (AC power)
Relative Humidity:5 ~ 95% (non-condensing)
StorageTemperature:-40 ~ 85 degrees C
Relative Humidity:5 ~ 95% (non-condensing)
Warranty Non Warranty
